Specialty Traders is an Authorized Genzler Dealer!

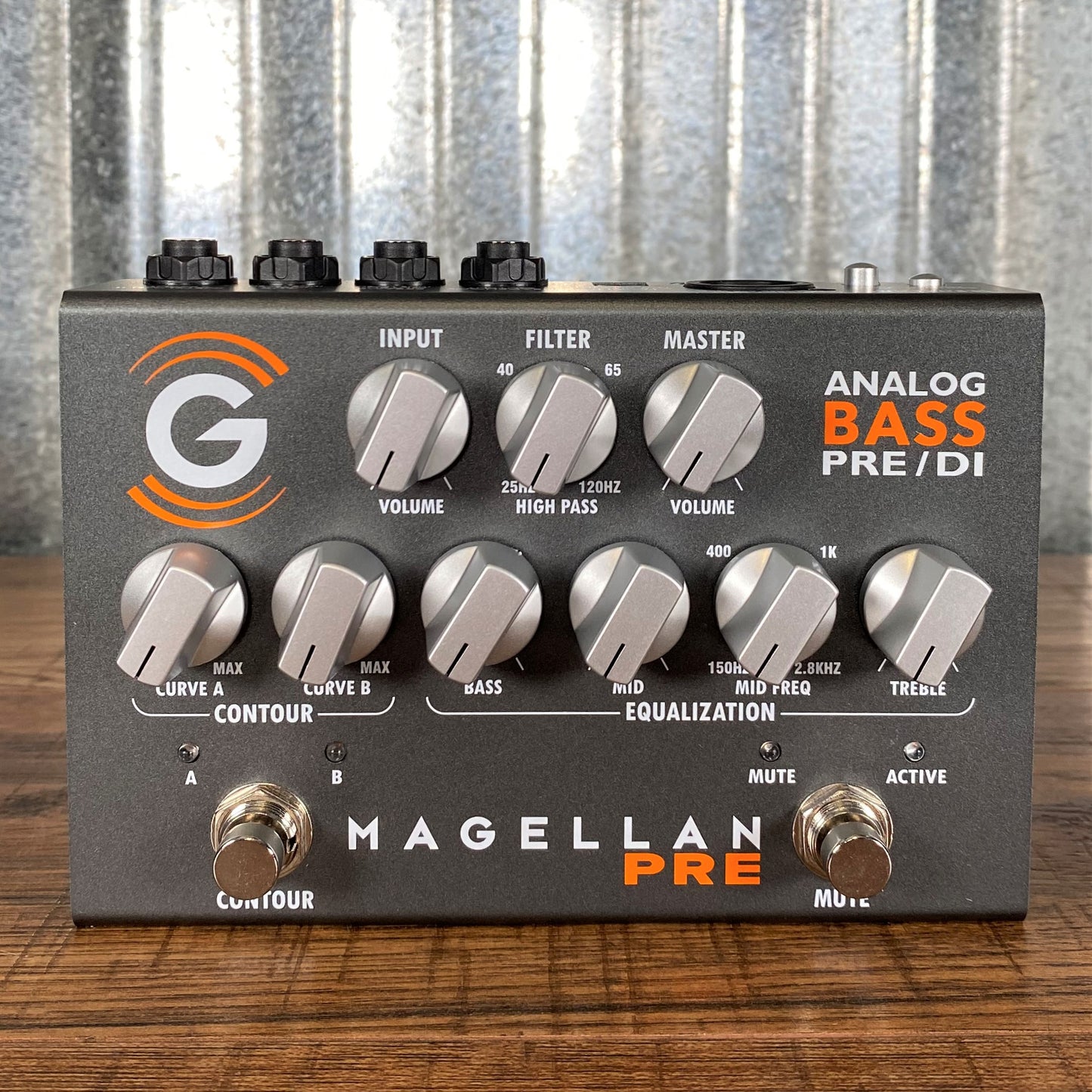

Genzler Amplification Magellan Pre Preamp Direct Out EQ Bass Effect Pedal

New

We strongly recommend using the proper power supply for any pedal. Daisy chain power supplies may not supply enough power when using multiple pedals or introduce noise into the chain. Consult the pedal manual when available for manufacturer recommended power specifications.

The MAGELLAN® PRE is an all-analog full featured preamp pedal with a wide-range input gain control, 3-band equalization with sweepable mids, our unique foot switchable dual curve adjustable contour circuits, foot switchable mute circuit, aux input, headphone output, balanced/unbalanced main output and balanced XLR direct output. This compact, lightweight pedal brings all of the tone and versatility of our MAGELLAN series bass amplifier designs into a small pedal format.

The MG-PRE-PEDAL is also a great companion to our 4 ON THE FLOOR Classic Overdrive Pedal, CRASH BOX-4 Classic Distortion Pedal and RE/Q 5 band EQ + Filter Pedal.

Features:
Wide Range Input Circuitry
Input and Master Volume Controls
Variable High Pass Filter
Switchable Dual Contours (A & B)
Independent Contour Controls
Same Magellan 3 Band EQ w/Sweepable Mids
Signal mute
Preamp Output—Capable of driving a Separate Power Amp
Aux Input
Headphone Output
Studio Quality Direct Out Circuitry w/Pre or Post and GND Lift
Lightweight Aluminum Chassis Construction
Operates on any Power Supply Voltage: 9 – 18VDC, either Polarity (power supply not included)
Dimensions: 6” (152mm) W x 4.3” (110mm ) D (w/ jacks) x 2.5” (63mm) H (w/ knobs and feet)
Weight: 1.1 lb (0.5kg)
Specifications
DIMENSIONS: 6” (152mm) W x 4.3” (110mm ) D (w/ jacks) x 2.5” (63mm) H (w/ knobs and feet)
WEIGHT: 1.1 lb (0.5kg)
POWER SUPPLY: 9VDC-18VDC (low noise type), either polarity, 80mA
POWER SUPPLY JACK: 2.1mm center pin with 5.5mm barrel (standard Boss pedal dimensions)
INPUT IMPEDANCE: 1 Meg Ohm
INPUT SENSITIVITY (nominal): -10dBu to -20dBu (instrument level)
INPUT SENSITIVITY (maximum): >0dBu (9V supply), >+5dBu (12V supply), >+10dBu (18V supply)
HIGH PASS Filter Range: 25Hz – 120hz, 18dB/oct variable
EQ Filter Points:
LOW: +/-15dB shelving below 75 Hz
MID: +/-15dB peak-dip, between 150Hz – 2.8kHz
HIGH: +/-15dB shelving above 6kHz
PREAMP OUTPUT IMPEDANCE: 1k ohm (unbalanced), 2k ohm (balanced)
PREAMP OUTPUT LEVEL (nominal): -10dBu to +4dBu (line level)
PREAMP OUTPUT LEVEL (unbalanced maximum): +8dBu (9V supply) +12dBu (12V supply), +16dBu (18V supply)
PREAMP OUTPUT LEVEL (balanced maximum): +14dBu (9V supply) +18dBu (12V supply), +22dBu (18V supply)
DIRECT OUTPUT LEVEL (balanced nominal): -30dBu (mic level)
DIRECT OUTPUT IMPEDANCE: 2k ohm (balanced)
AUX INPUT IMPEDANCE: 10 K Ohm
AUX INPUT LEVEL (nominal): -10dBu, stereo (sums to mono)
AUX INPUT LEVEL (maximum): +10dBu, stereo (sums to mono)
HEADPHONE OUTPUT: Drives headphones and IEM buds from 8 ohms -200 ohms, stereo output, mono signal path. (Higher impedance headphones, such as 600 ohms, will result in less output and headroom.)
